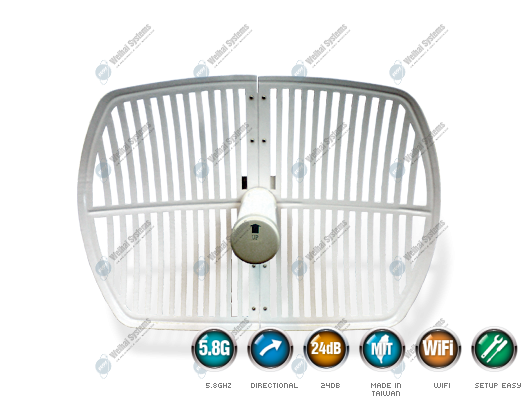

GR-5824 5.8GHz Grid Antenna 24dBi
5.8G Directional Antenna for Transmitter or Receiver
 |
|
This is professional & directional antenna suitable for outdoor application.
 |
|
| Model | GR-5824 |
| Type | Grid Antenna |
| Frequency | 5.725~5.875 GHz |
| Gain | 24 dBi |
| Connector | N Type Female |
| Polarization | Linear |
| Wave Impedance | 50 ohm +/- 5 ohm |
| Radome Mater | Aluminum and ABS |
| Power Handling | 20W max |
| Dimension | 600mm(L) x 435mm(W) x 270mm(H) |
| Weight | 1.05kg |
Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice. | |
